The Importance of Drag Systems in Fishing Reels

Understand the importance of drag systems in fishing reels. Learn to adjust drag for fighting fish, reel control, and landing bigger fish like an angler.

Ever wonder why that monster fish broke your line and swam away with your favorite lure? The culprit might be right under your thumb—your reel’s drag system. It’s that unsung hero of your fishing setup that doesn’t get nearly enough credit until things go wrong.

Fun Fishing Reel Drag Game

🎣 The Amazing Fishing Reel Challenge 🎣

🐟
Perch
Small • Easy
🐠
Bass
Medium • Normal
🦈
Shark
Large • Hard
🐠
Drag Setting: 5 out of 10
Select your fish, adjust your drag, then cast your line! Can you catch the fish without breaking your line?
0
Fish Caught
0
Fish Escaped
0
Lines Broken

Title

Message text

What Is Drag on a Fishing Reel? The Basics You Need to Know

Think of drag as your fishing reel’s braking system. When a fish decides it wants nothing to do with you and makes a mad dash for freedom, your drag creates resistance that allows line to leave the reel without snapping. It’s a controlled surrender—you’re letting the fish run while keeping enough pressure to tire it out.

The science is pretty straightforward: drag systems create friction between internal components, converting some of that wild fish energy into heat rather than strain on your line. It’s the difference between fighting a fish and fighting physics itself (spoiler alert: physics usually wins).

Your drag system has one job: finding that sweet spot between too tight (snap goes the line) and too loose (hello, endless fish story about “the one that got away”). This delicate balance is what separates the Instagram hero shots from the empty-handed trips back to shore.

How Does a Fishing Reel Drag System Work?

Drag systems aren’t magic—they’re mechanical marvels that rely on friction to do their job. When a fish pulls hard enough, these systems allow the spool to spin backward, releasing line under controlled tension.

The basic components include:

  • Friction surfaces (usually discs)
  • Adjustment mechanisms
  • Housing (sealed in some systems)

When you hook a fish, these components work together like a well-rehearsed band. The fish pulls, the drag lets the line go at just the right resistance, and you maintain control without your line snapping. It’s a dance of tension that plays out dozens of times during a serious fishing session.

Unlike aerodynamic drag that slows objects moving through air, fishing reel drag is all about controlling solid-on-solid friction. It transforms the raw power of a fighting fish into manageable resistance—similar to how friction works in basic physics.

Types of Drag Systems: Finding Your Perfect Match

Star Drag Systems: The OG of Fishing Reels

Star drags are the workhorses of the fishing world—reliable, straightforward, and perfect for most everyday fishing scenarios. Named for that star-shaped wheel on the side of your reel, they’ve been the standard since the late 1960s.

How they work is beautifully simple: turn the star wheel, adjust the pressure on internal friction plates, and you’re good to go. They’re preset before you cast and maintain that setting throughout your fishing adventure.

These systems shine when you’re targeting fish under 50 pounds. The main drawback? They typically work in either “on” or “off” modes, without much finesse in between. Think of them as the flip phone of drag systems—they get the job done without the fancy features.

Lever Drag Systems: For When Precision Matters

Lever drags are what happen when engineers who fish get annoyed with star drags. They give you precise control through a lever mechanism that can be adjusted mid-fight, perfect for when that bass decides to make a break for the nearest underwater structure.

The beauty of lever drags is their tactile feedback—you can feel where your drag is set without taking your eyes off your rod tip. Many come with marked positions for “strike” and “full” settings, letting you quickly adjust from a fish-hooking setting to a fish-fighting setting in one smooth motion.

If you’re targeting the big boys—fish over 50 pounds—lever drags are your best friend. They give you the control you need when every second counts, and that trophy fish is testing both your line and your patience.

Sealed Drag Systems: The Low-Maintenance Luxury Option

Sealed drags are the premium option for anglers who hate maintenance (or fish in environments that destroy regular drags). These systems lock the drag components in a sealed housing that keeps water, salt, and debris out.

Modern sealed systems like the Abel Sealed Drag Series use high-tech components like “stacked multi-discs of prime grade machined aluminum and Rulon®, and a field-tested proprietary gasket seal that completely locks out moisture.” That’s a fancy way of saying they’re built to handle whatever you throw at them without needing babysitting.

The perks are obvious: exceptional durability, consistent performance in harsh conditions, and way less maintenance. Some models deliver over 20 pounds of braking power while staying buttery smooth throughout their range. The downside? They’re not cheap, but then again, neither is losing that once-in-a-lifetime catch to a failed drag.

Drag Materials: From Cork to Space-Age Composites

Old-School Cool: Traditional Drag Materials

Back in the day, drag systems relied on cork or felt. Cork was the premium choice, prized for its natural properties that provided smooth operation and good heat management. The drawback? It needed regular TLC and could fall apart when exposed to saltwater or left under tension too long.

Felt discs were the budget-friendly alternative—reliable but not quite matching cork’s smoothness or longevity. Both materials served anglers well for decades, but like cassette tapes and mullets, their time in the spotlight has largely passed.

The New Kids on the Block: Modern Synthetics

Today’s drag systems use materials that would make a NASA engineer nod in approval: carbon fiber, Teflon, and specialized composites like Rulon®. These materials offer friction characteristics that traditional materials can only dream about, plus they resist wear, heat, and environmental damage.

These advanced materials allow for drag systems with remarkable properties: low startup inertia to protect delicate leaders, consistent performance throughout their pressure range, and durability that laughs in the face of saltwater. The Rulon® material used in high-end systems is “known for low coefficient of friction, excellent abrasion resistance, wide range of operating temperatures, and chemical inertness”—basically, it’s the superhero of drag materials.

Setting Your Drag: The Goldilocks Principle

Setting your drag isn’t rocket science, but getting it wrong is a surefire way to lose fish. The general rule suggests setting drag to about one-third of your line’s breaking strength—enough to tire the fish but not enough to snap your line.

Different reels have different adjustment methods:

  • Spinning reels: Turn the knob at the front or rear of the spool
  • Baitcasting reels with star drags: Turn the star-shaped knob
  • Lever drag reels: Move the lever to the desired position

The right setting varies based on your target species and fishing conditions. That’s why experienced anglers often test their drag setting by pulling line off the reel by hand before making that first cast.

When to Adjust Your Drag While Fighting Fish

Sometimes you’ll need to make adjustments mid-fight. Maybe that “average-sized” bass turned out to be the lake monster, or perhaps your target fish is behaving differently than expected.

Lever drag systems excel here, allowing you to dial resistance up as fish tire or dial it back when they make blistering runs. Star drags offer less flexibility, but experienced anglers can still make quick adjustments between fish runs.

Remember: too tight, and your line breaks; too loose, and the fish gains too much control. Finding that perfect balance is part of the art of angling.

Specialized Drag Applications: Different Waters, Different Needs

Freshwater Fishing: Finesse Over Force

Freshwater typically means smaller fish and lighter tackle, requiring drag systems with smooth operation at lower settings. Front or rear drag spinning reels are popular choices here, providing the performance needed for species like trout, bass, and panfish.

In freshwater, drag smoothness and consistent startup inertia often take priority over maximum stopping power. You’re protecting lighter lines and more delicate presentations, so a jerky drag can spell disaster faster than you can say “fish on.”

Saltwater and Big Game: When Power Meets Precision

Saltwater fishing throws unique challenges at drag systems—corrosion being the big one, plus the need for substantially more stopping power. Sealed drag systems have revolutionized this arena by eliminating most maintenance headaches while delivering the powerful, smooth performance needed for large game fish.

High-end systems like the Abel Sealed Drag Series offer up to 20+ pounds of braking power through multi-disc designs. With “30 detents (clicks) of adjustment for virtually infinite settings,” these reels give you the control needed when battling powerful saltwater species that can peel off 100 yards of line in seconds.

Drag Maintenance: Keeping Your System in Fighting Shape

Traditional Drag Maintenance: The Regular Check-Up

Traditional systems with cork or felt components need regular attention, like that friend who always needs validation. Cork drags must be cleaned, dried after use (especially after saltwater exposure), and occasionally treated with appropriate lubricants to maintain their friction characteristics.

How often? It depends on your fishing conditions, with saltwater requiring more frequent check-ups. Neglected drag systems become jerky, inconsistent, and excellent at helping fish escape.

Sealed Systems: The Low-Maintenance Revolution

Sealed drag systems address the maintenance headaches of traditional designs. As Jeff Patterson, director of sales for Abel, puts it: “While its 27 year history has proven that Abel cork drag reels work and set world records, times change, technology changes, and the view on what was once considered ‘routine care’ required on a cork drag reel has also changed.”

These systems provide “a maintenance-free sealed drag system that won’t corrode or fail you”—a game-changer for anglers who fish frequently in challenging environments or prefer spending time fishing rather than maintaining equipment.

Troubleshooting: When Your Fishing Reel’s Drag’s Not Working

If your drag suddenly feels sticky, inconsistent, or completely fails, don’t panic—at least not until you’ve tried these fixes:

  1. Check for debris or salt buildup around the drag adjustment mechanism
  2. Ensure your line isn’t crossed or tangled on the spool
  3. Inspect for worn components that might need replacement
  4. Clean and lubricate according to the manufacturer’s recommendations

For sealed systems, issues are rare but usually require professional attention when they occur. Traditional systems can often be disassembled, cleaned, and restored to working order with some basic maintenance.

Comparing Popular Drag Systems

Drag TypeBest ForMaintenance NeedsPrice RangeIdeal Fishing Environment
Star DragBeginners, general fishing, species under 50lbsModerate$ – $$Freshwater, light saltwater
Lever DragExperienced anglers, big game, precision controlModerate to High$$ – $$$All environments, especially big game
Sealed DragSerious anglers, harsh conditions, minimal maintenanceLow$$$ – $$$$Saltwater, extreme conditions

Some Best Drag System Fishing Reels

The Final Cast: Why Your Drag System Matters More Than You Think

Your drag system is the unsung hero of your fishing setup, working silently until that moment when a trophy fish tests its limits. Understanding how it works, selecting the right system for your fishing style, and maintaining it properly can be the difference between a fish story with photographic evidence and one that starts with “you should have seen the one that got away.”

From traditional star drags to cutting-edge sealed systems, each option offers distinct advantages for specific fishing applications. The evolution of these systems shows how fishing technology continues to advance, improving performance, reliability, and the overall angling experience.

Whether you’re chasing panfish in your local pond or marlin in deep blue waters, your drag system is your silent partner in every fight. Treat it right, understand its limits, and it’ll help you bring home the catches that make fishing the addictive pursuit we all love.

What’s your experience with different drag systems? Drop a comment below and let’s talk fishing tech—because the only thing better than catching fish is talking about how we caught them.

5 FAQs About Fishing Reel Drag Systems

How Do You Measure Drag on a Fishing Reel?

Want to know exactly how much drag you’re working with? Grab a spring scale and hook it to your fishing line. With your rod at a 45-degree angle (just like you’d fight a fish), pull until the line starts coming off the reel.

The scale will show exactly how much force is required to make your drag slip. For most setups, your drag should be set to roughly 1/3 of your line’s breaking strength—if you’re using 20-pound test line, you’d want about 7 pounds of drag.

This simple test takes the guesswork out of your reel setup and helps prevent that heartbreaking moment when your line breaks just as you’re about to land the big one.

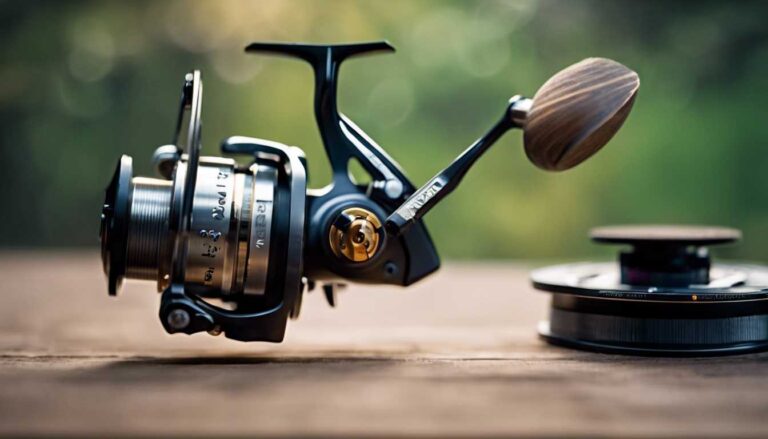

How Should I Set the Drag on My Spinning Reel?

Setting the drag on your spinning reel is less about following strict rules and more about finding what works for your specific fishing situation.

First, adjust the drag by rotating the knob at the top of the spool (clockwise to tighten, counterclockwise to loosen).

For most fishing scenarios, you’ll want your drag set so it allows line to slip before your knot or fishing line fails. A good starting point is to set the drag to about 25-30% of your line’s rated strength—if you’re using lighter 8-pound line, that’s roughly 2-3 pounds of resistance.

Remember, drag is usually adjusted depending on the size of the fish you’re targeting and the structure you’re fishing around. A loose drag is better than one that’s too tight when that surprise monster takes your bait!

Do Baitcasters Have Different Drag Systems Than Other Reels?

Baitcasters bring their own flavor to the drag game. Most use a star drag system—that star-shaped knob next to the handle that allows anglers to adjust the tension with precision. Unlike spinning reels, where you adjust the top or front of the spool, baitcasters keep their drag controls on the side.

The star knob applies pressure to internal disc drag components, creating consistent resistance when a fish pulls line. Some premium baitcasters use sophisticated sealed systems that keep water and grit out, making them ideal for saltwater fishing.

The drag on these reels excels when targeting big fish because they typically offer more stopping power than spinning reels. If you’re planning to tangle with bigger fish that might make powerful runs, a quality baitcaster with a smooth drag system gives you the muscle to stay in control.

How Do I Adjust the Drag Mid-Fight With a Big Fish?

When a monster fish decides your carefully pre-set drag isn’t part of its escape plan, you’ll need to make adjustments on the fly. With conventional reels and baitcasters, you can crank the star knob or slide the lever during the fight to tighten or loosen drag as needed.

The trick is to adjust the tension when there’s momentary slack, like when the fish’s momentum changes or it swims toward you. For spinning reels, reach up and rotate the drag knob at the front while maintaining pressure with your rod.

Remember to give a little more drag when the fish tires and loosen when it makes another run. This flex in your approach is often what separates landing fish from losing them.,

The bigger the fish, the more crucial this becomes—adjust in small increments rather than dramatic changes that might break the line or give the fish too much freedom.

What Fishing Tips Can You Share for Drag System Success?

Your drag is usually the hero or villain in your fishing stories, so here are some real-world fishing tips to make it work for you.

First, always test the drag before your first cast—nothing worse than hooking into something special only to discover your drag is too tight or completely loose.
Second, adjust the drag depending on the size of the fish you’re targeting—heavier for structure-dwelling brutes, lighter for open-water speedsters.
Third, remember that braided fishing line has almost no stretch, so you might want to set your drag a little looser than with monofilament to prevent sudden breaks.
Fourth, if you’re using lighter tackle, pay attention to how much force is required to set the hook—too much drag can break the line when you’re trying to set.
Finally, regularly check that your drag hasn’t slipped during the day—rod bumps, bag jostling, and even temperature changes can affect your settings.

Following these fishing tips will help ensure your drag system performs exactly when you need it most, at that heart-stopping moment when the line starts peeling off your reel.
