Standing waist-deep in a Montana spring creek last summer, I watched helplessly as a 20-inch brown trout stripped line from my reel with the fury of a freight train. What should have been the fish of a lifetime became a heartbreaking lesson in the critical importance of proper drag systems and weight balancing.
The jerky, inconsistent drag pressure and poorly balanced setup cost me that fish—and taught me everything I needed to know about what makes fly reels truly perform when it matters most.
After two decades of testing reels from Abel fly reels to budget options, I’ve learned that understanding drag systems and achieving proper weight balance isn’t just technical jargon—it’s the difference between landing trophy fish and watching them swim away.
Understanding Fly Reel Drag Systems
The drag system is the heart of any serious fly reel, responsible for applying controlled resistance to prevent line breaks while maintaining consistent pressure throughout a fish’s run.
Unlike spinning reels that rely purely on friction washers, fly reel drag systems must balance minimal startup inertia with maximum stopping power.
Critical Drag Performance Metrics
Modern fly reels are measured by several key specifications:
- Startup Inertia: The initial resistance felt when the line begins moving (measured in ounces of force)
- Maximum Drag Pressure: Total stopping power available (typically 15- 25+ pounds for saltwater reels)
- Drag Range: The adjustable spectrum from zero to maximum pressure
- Heat Dissipation: The system’s ability to manage friction-generated heat during long runs
Companies like Nautilus fly reels have pioneered systems delivering less than 1% startup inertia while maintaining over 20 pounds of maximum drag pressure—a remarkable engineering achievement that protects light tippets while stopping powerful fish.
Drag System Types: Click & Pawl vs. Disc Drag
Click and Pawl Systems
The traditional click and pawl drag system operates through a spring-loaded pawl that engages gear teeth on the spool. This simple mechanism provides several advantages:
Advantages:
- Ultra-lightweight construction (typically 2-4 ounces)
- Zero startup inertia for delicate tippet protection
- Instant drag adjustment by palming the rim
- Classic aesthetic appeal
- Minimal maintenance requirements
Disadvantages:
- Limited maximum drag pressure (usually under 5 pounds)
- Inconsistent pressure during temperature changes
- Audible clicking can spook fish in quiet water
- Less precise drag adjustment
Modern manufacturers like Hardy fly reels continue to perfect click and pawl systems, particularly in their Bougle and Perfect models that balance traditional function with contemporary materials.
Disc Drag Systems
Disc drag systems compress friction materials between rotating and stationary surfaces, offering superior control and stopping power. The most advanced systems, like those found in Hatch fly reels, utilize multiple disc configurations for enhanced performance.
Key Disc Drag Variations:
- Draw-Bar Systems: Compress discs through threaded adjustment
- Sealed Multi-Disc: Multiple friction surfaces in waterproof housing
- Carbon Fiber Hybrid: Combine carbon and cork materials for optimal performance
Drag Materials: Cork vs. Carbon Fiber vs. Sealed Systems
Cork Drag Systems
Traditional cork drag systems, exemplified by Abel fly reels, offer unmatched smoothness and natural feel. Cork’s cellular structure provides:
- Coefficient of Friction: Approximately 0.65 against anodized aluminum
- Heat Absorption: Excellent thermal properties prevent glazing
- Compressibility: Natural elasticity maintains consistent pressure
- Maintenance: Requires periodic lubrication with neatsfoot oil
Carbon Fiber Systems
Modern carbon fiber drags, like those in Galvan fly reels, provide superior heat dissipation and consistent performance:
- Thermal Conductivity: 2-3x better heat dissipation than cork
- Durability: Resistant to saltwater corrosion and wear
- Consistency: Maintains pressure across temperature ranges
- Power: Capable of 20+ pounds maximum drag pressure

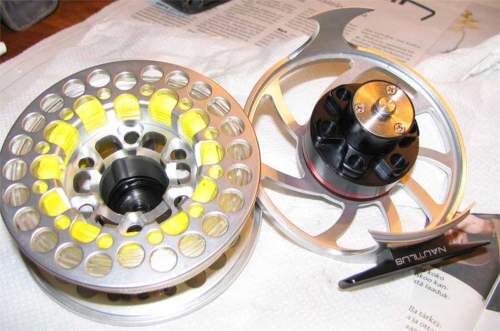

Sealed Drag Systems
The latest innovation combines multiple materials in waterproof housings. Nautilus fly reels’ CCF-X2 system exemplifies this approach with alternating carbon fiber and synthetic washers in fully sealed assemblies.
Weight Balancing Fundamentals

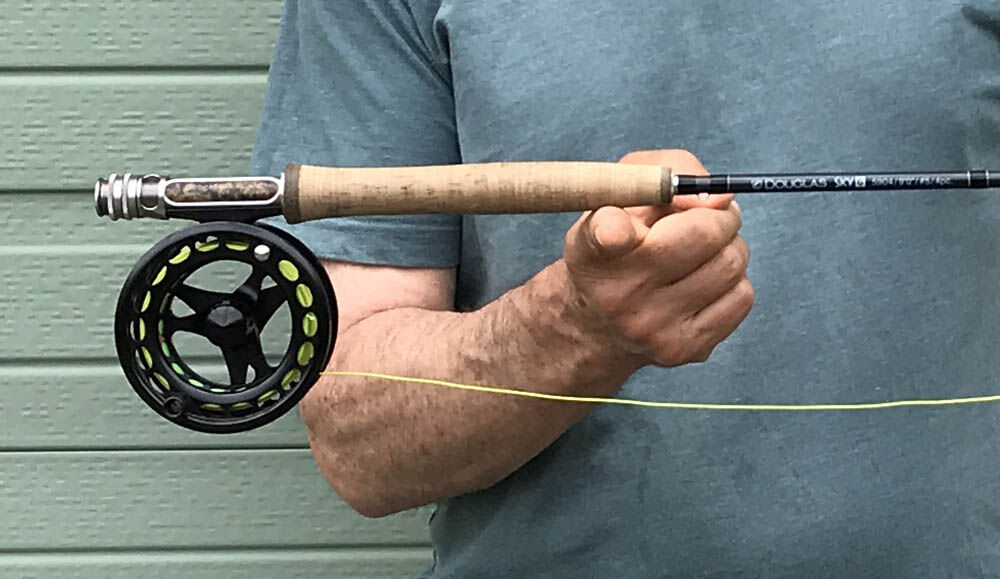

Proper weight balancing transforms casting efficiency and reduces fatigue during extended fishing sessions. The ideal balance point should fall at the forward edge of the cork grip, approximately 1-2 inches ahead of the reel seat.
Balance Point Calculation
The relationship between rod weight and reel weight follows this general formula:
- Optimal Reel Weight = 1.5 × Rod Weight (for single-hand rods)
- Balance Point = Forward grip edge ± 1 inch
Weight Distribution by Rod Type
| Rod Weight | Optimal Reel Weight | Typical Balance Point |
|---|---|---|
| 3-4 wt | 3.5-4.5 oz | Forward grip edge |
| 5-6 wt | 4.5-6.0 oz | Forward grip + 1″ |
| 7-8 wt | 6.0-8.0 oz | Forward grip + 1.5″ |
| 9-12 wt | 8.0-12+ oz | Forward grip + 2″ |
Adjustable Weight Systems
Progressive manufacturers like Lamson fly reels now offer modular weight systems. The Guru E-Series features removable tungsten weights (½ oz, 1 oz, 1½ oz) that allow precise balance tuning for different rod combinations.
Premium Reel Comparison
High-End Sealed Drag Reels

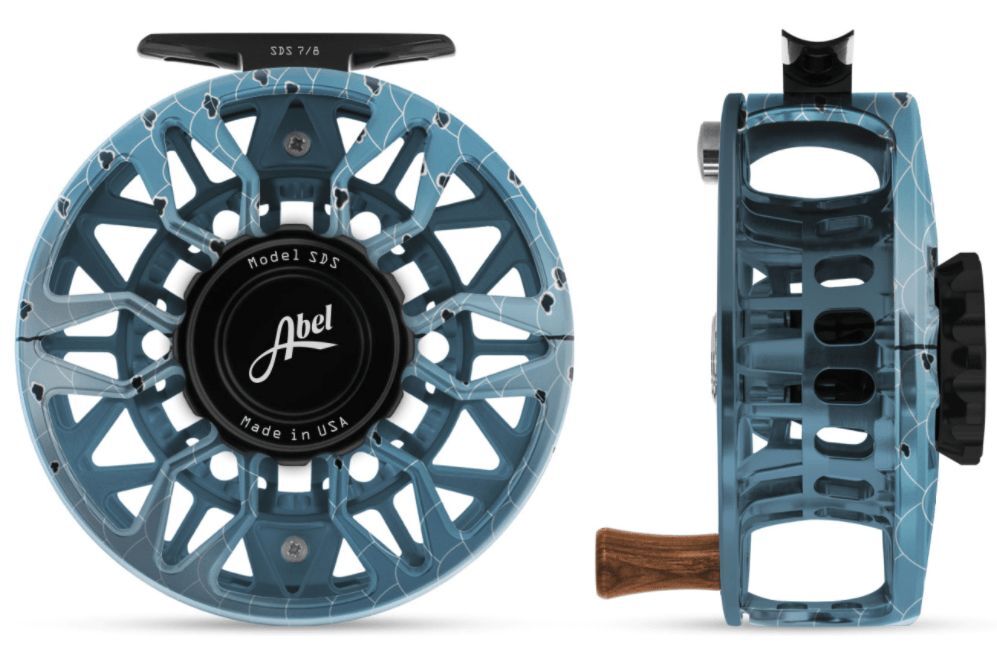

Abel SDS (Sealed Drag Salt)
- Maximum Drag: 20+ pounds
- Weight: 8.5-12 oz (depending on size)
- Drag Material: Alternating carbon composite and stainless steel
- Price Range: $695-$795
Hatch Iconic Series
- Maximum Drag: 15+ pounds
- Weight: 7.2-10.5 oz
- Drag Material: Carbon-filled composite
- Price Range: $575-$675
Nautilus CCF-X2
- Maximum Drag: 20+ pounds
- Startup Inertia: <1%
- Weight: 6.8-11.2 oz
- Price Range: $750-$950
Mid-Range Performance Options
Galvan Torque Series
- Maximum Drag: 12+ pounds
- Weight: 5.7-8.9 oz
- Drag Material: Sealed composite system
- Price Range: $395-$495
Orvis Hydros SL
- Maximum Drag: 14 pounds
- Weight: 4.2-7.1 oz
- Drag Material: Carbon and stainless steel
- Price Range: $298-$398
Value-Oriented Choices
Redington Behemoth
- Maximum Drag: 10+ pounds
- Weight: 5.7-7.5 oz
- Drag Material: Carbon fiber disc
- Price Range: $199-$249
Sage Spectrum
- Maximum Drag: 8 pounds
- Weight: 4.8-6.9 oz
- Drag Material: Sealed carbon system
- Price Range: $179-$229
Real-World Applications
Saltwater Scenarios
When targeting species like tarpon, permit, or bonefish, sealed drag systems become essential. The combination of salt spray, sand, and powerful fish demands reels that can deliver 15+ pounds of smooth, consistent drag pressure without degradation.
I’ve personally tested Danielsson fly reels in Bahamian flats conditions, where their lightweight construction (4.75-5 oz for 5-weight models) provides excellent balance while maintaining sufficient stopping power for 20-pound bonefish.
Freshwater Applications
For trout fishing, the equation changes dramatically. Ultra-light reels weighing 3-4 ounces, like those from Sage fly reels, offer perfect balance with delicate presentation rods while providing just enough drag for 16-inch rainbows.
Steelhead and Salmon
These anadromous species require the perfect balance of power and finesse. Lamson fly reels excel in these applications, offering large arbor designs that provide quick line pickup (13+ inches per turn) while maintaining the drag authority needed for 30-inch chrome-bright steelhead.
Maintenance and Troubleshooting
Sealed Drag Maintenance
Contrary to popular belief, “sealed” doesn’t mean maintenance-free. Saltwater applications require specific care protocols:
- Post-Session Rinse: Thoroughly rinse with fresh water after each saltwater session
- Quarterly Service: Professional cleaning and lubrication every 3 months for heavy use
- Annual Overhaul: Complete drag system inspection and replacement of worn components
Cork Drag Care
Cork systems require more frequent attention but offer superior user serviceability:
- Lubrication: Apply neatsfoot oil every 10-15 fishing days
- Cleaning: Use denatured alcohol and soft brush to remove debris
- Pressure Adjustment: Maintain proper compression without over-tightening
Common Issues and Solutions
Inconsistent Drag Pressure
- Check for debris in drag chamber
- Verify proper lubrication
- Inspect for worn friction materials
Excessive Startup Inertia
- Clean and lubricate bearing surfaces
- Verify proper drag adjustment
- Check for binding in spool assembly
Frequently Asked Questions
Q: What’s the difference between cork and carbon fiber drag systems?
Cork drag systems, like those in traditional Abel fly reels, offer superior smoothness and natural feel due to cork’s cellular structure and compressibility. They require regular maintenance with neatsfoot oil but provide unmatched performance for experienced anglers. Carbon fiber systems dissipate heat better (2-3x more efficient) and offer higher maximum drag pressures (20+ pounds vs. 10-15 pounds for cork), making them ideal for saltwater applications.
Q: How do I determine the proper balance point for my rod and reel combination?
The optimal balance point should fall 1-2 inches ahead of the reel seat on the cork grip. To test this, assemble your complete outfit (rod, reel, line) and balance it horizontally on your index finger. If the balance point falls behind the grip, you need a heavier reel. Modern reels like the Lamson Guru E-Series offer adjustable weights (½ oz, 1 oz, 1½ oz) for precise tuning.
Q: Are sealed drag systems really maintenance-free?
No sealed drag system is truly maintenance-free, especially in saltwater environments. While brands like Nautilus fly reels and Hatch fly reels design their systems to minimize maintenance, they still require freshwater rinsing after saltwater use and periodic professional service. The “sealed” designation primarily refers to protection from debris and moisture during normal operation.
Q: What drag pressure should I set for different fish species?
General guidelines suggest setting initial drag at 25-30% of your tippet’s breaking strength. For example:
Trout on 5X tippet (4.4 lb): 1-1.5 pounds initial drag
Bonefish on 12 lb tippet: 3-4 pounds initial drag
Tarpon on 20 lb tippet: 5-6 pounds initial drag
Remember that you can always add pressure by palming the rim during the fight.
Q: How much backing should I put on a large arbor reel?
Backing capacity depends on your target species and fishing environment. Standard recommendations:
Trout fishing: 100-150 yards of 20 lb backing
Steelhead/Salmon: 150-200 yards of 30 lb backing
Saltwater species: 200-300+ yards of 30 lb backing
Large arbor reels like those from Galvan fly reels maximize backing capacity while maintaining fast retrieval rates (10-13 inches per turn).
Q: What’s the advantage of large arbor reels for line retrieval?
Large arbor reels provide faster line pickup due to increased spool circumference. A standard arbor might retrieve 6-8 inches per turn, while large arbor designs can achieve 10-15 inches per turn. This becomes critical when fighting fast-moving fish or when you need to quickly recover line during slack periods. The larger spool also reduces line memory and improves overall line management.
Conclusion and Next Steps
Understanding fly reel drag systems and weight balancing transforms your fishing effectiveness from good to exceptional. Whether you’re investing in premium Abel fly reels for lifetime performance or selecting value-oriented Redington fly reels for getting started, the principles remain constant: match your drag system to your fishing applications, achieve proper weight balance for your rod, and maintain your equipment properly.
Your Next Steps:
- Assess Your Current Setup: Test your rod/reel balance point and drag smoothness
- Identify Your Primary Fishing Applications: Match drag capabilities to your target species
- Budget for Quality: Invest in the best reel your budget allows—it’s a lifetime purchase
- Learn Proper Maintenance: Develop a care routine appropriate for your drag system type
Remember, the perfect reel isn’t the most expensive one—it’s the one that balances perfectly with your rod, provides appropriate drag for your fishing, and fits your maintenance preferences. Take time to handle different models, test their balance with your rods, and choose based on performance rather than marketing claims.
